Small Enterprise Environment Monitoring System
- Monitor and manage server room environmental conditions over IP.
- Sensors supported:
- 2 external configurable sensors
- 5 digital inputs sensitive to contact closure
- One output relay for control of external devices.
- Relay activates upon alarm or via the user interface.
- Supports IP network video cameras for live view of any facility.
- One integrated view – see different Web cameras side-by-side with physical and environmental parameters.
- Any programmed event can trigger a snapshot from an IP camera.
- Monitor (ping) up to 16 IP network devices.
- Alerts are sent if devices are not responding.
- Linux inside.
- Multi–language support – English, German, Indonesian, and Japanese.
- Create multiple alerts for any installed sensor.
- Sensor conditions (events) can be configured to trigger alerts by themselves, and/or be used in combination with other events to trigger Smart Alerts.
- Configure up to 50 events.
- Up to 20 Smart Alerts can be configured to use different event combinations to send alert messages.
- Alerts are posted in message log, which is accessible through Web user interface.
- Integrates with various Open Source monitoring packages – Nagios and MRTG.
- Two USB ports for connecting USB modem or for downloading log data to USB flash drive, and one USB console port for serial terminal interface.
- Available with optional internal battery backup.
- Alerts are sent when there is a power outage and when power returns.
- Optional intuitive graphical software provides an easy-to-use, unified interface for both monitoring and configuring up to 3,000 ENVIROMUX-2D/5D/16D, ENVIROMUX-SEMS-16(U), IPDU-S4/8 units and all connected sensors.
- Flexible Zero-RU mounting.
- Mounting tabs included.
- Optional 1RU rackmount kit available; the ENVIROMUX unit can be mounted with the front or rear facing out.
- Optional DIN mounting available.
- Security: HTTPS, SSHv2, SSLv3, IP Filtering, LDAPv3, AES 256-bit encryption, 16-character username/password authentication, user account restricted access rights.
- Use in data centers, co-lo sites, web hosting facilities, telecom switching sites, POP sites, server closets, or any unmanned area that needs to be monitored.
- Two female RJ45 jacks for connecting NTI temperature, humidity, liquid detection, smoke detection, glass break, vibration, motion sensors, and more.
- Two levels of user-defined alerts – non-critical and critical.
- Provides +12 VDC, 100 mA for each port.
- Five screw terminal pairs for connecting dry contact devices and the liquid detection sensor.
- Potential-free.
- Output voltage: +5 V DC
- Current limited to 10 mA
- Maximum resistance to close contact: 300K Ohm
- One screw terminal pair.
- Potential-free relay switch contacts.
- Normally open / normally closed connection points.
- Maximum switching load: 0.5A at 125 VAC, 1A at 30VDC
- Two female USB Type A connectors for connecting USB modem or for downloading log data to USB flash drive.
- One female USB Type B connector for connecting a PC for serial terminal access.
- One female RJ45 connector.
- 10/100 Base-T Ethernet interface.
- Provides +12 VDC, 500 mA.
- Rechargeable sealed lithium battery.
- Provides back-up for two hours.
- HTTP/HTTPS, SNMP V1/V2c/V3, SMTP, TCP/IP, Syslog, SNTP, DHCP, SSHv2, SSLv3, LDAPv3, AES 256-bit, 3DES, Blowfish, RSA, EDH-RSA, Arcfour, IPV6, WAP 2.0
- Compatible with any SNMP management software.
- Operates and configures via HTTP/HTTPS web page, Telnet, SSH, or USB serial interface.
- An IP address can be assigned to the ENVIROMUX-SEMS-2D automatically by a DHCP server.
- Generates SNMP traps, email alerts, syslog messages, and SMS messages (via USB 3G modem).
- Alerts are posted in event log, which is accessible through Web user interface.
- Email alerts can be sent to 17 addresses.
- WxDxH: 5.82x3x1.75 in (148x76x44 mm)
- 110 or 220 VAC at 50 or 60 Hz via AC adapter.
- Power consumption: 5 W
- Use the PWR-48V-12V1-6A DC-DC power converter to install the ENVIROMUX-2D in a 48V or 24V Telecom environment.
- Operating temperature: 32 to 140°F (0 to 60°C).
- Storage temperature: -22 to 140°F (-30 to 60°C).
- Operating /Storage Relative Humidity: 17 to 90% non-condensing RH.
- CE, RoHS
- EN51055, EN50121-3-2
- Two years
- Configuration can be done over the Internet/LAN via Web page.
- Supports Internet Explorer 6.0 and higher, Firefox 1.5 and higher, Netscape 9, Google Chrome, Safari 1.3 and higher for MAC, and Safari 3.0 and higher for PC.
- Multi-language support – English, German, Indonesian, and Japanese.
- Configure sensor's thresholds, alarm methods, formats of alerts, and system data log.
- View/edit sensors' current values, thresholds and alert statuses.
- All sensors connected to the ENVIROMUX-SEMS-2D can be viewed on one summary page.
- User configurable settings allow sensors to return to normal status when alert condition clears, without manually acknowledging/dismissing the alert.
- View/edit entries stored in the system logs.
- Event log records system events such as alerts, user login/logout, failed email messages, etc.
- Data log records samples of sensor readings. User specified sampling time period.
- Both the event log and the data log store up to 1,000 entries.
- The log can be downloaded as a tab-delimited plain text file.
- Configure IP information (address, subnet mask, default gateway, DNS, etc.), user administrative settings, and data logging settings.
- Up to 16 users can access the web page at one time.
- Configure up to 50 sensor conditions (events)
- Configure up to 20 Smart Alerts to use different event combinations to send alert messages.
- LEDs indicate the following:
- "Fault" (red) lights up if a sensor goes out of range of a configurable threshold.
- "Power" (green) lights up when the device is powered.
- Configure, control and monitor over the text-based menu system accessible via USB console port, Telnet, and SSH.
- Access is controlled via username/password.
- System stores encrypted login information.
- Two user levels: user and administrator.
- View summary page on mobile devices – smartphones, tablets, etc.
- Summary page lists all connected sensors' current values and alert statuses.
- Optional intuitive graphical software provides an easy-to-use, unified interface for both monitoring and configuring up to 3,000 ENVIROMUX-2D/5D/16D, ENVIROMUX-SEMS-16(U), IPDU-S4/8 units and all connected sensors.
- Small Enterprise Environment Monitoring System
- Environmental Sensors
- Alert & Communication Accessories
- Motion/Intrusion/Vibration Sensors
- Power Relays & Sensors
- Wireless Sensors & Accessories
- Sensor Accessories
SNMP and Web monitoring/management of server room environments. Provides early
warnings before critical events turn into disaster.
Also known as: Remote Server Environment Monitoring System, monitor network closet, data center thermometer, web alert thermometers temperature humidity IP sensor reading, computer rooms temperature alert, tcp/ip temp probe.

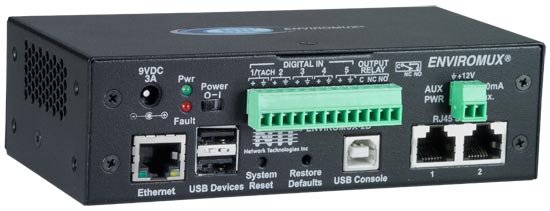

ENVIROMUX-2D
The ENVIROMUX® Small Enterprise Environment Monitoring System monitors critical environmental conditions (such as temperature, humidity, and water leakage) that could destroy network components in your server room. When a sensor goes out of range of a configurable threshold, the system will notify you via email, SNMP traps, web-page alerts, a visual indicator (red LED), voice phone calls (via Automatic Voice Dialer System), and SMS messages (via USB 3G modem).
The system supports two external configurable sensors, five digital input sensors, and one output relay for control of external devices.
The ENVIROMUX® Small Enterprise Environment Monitoring System monitors critical environmental conditions (such as temperature, humidity, and water leakage) that could destroy network components in your server room. When a sensor goes out of range of a configurable threshold, the system will notify you via email, SNMP traps, web-page alerts, a visual indicator (red LED), voice phone calls (via Automatic Voice Dialer System), and SMS messages (via USB 3G modem).
The system supports two external configurable sensors, five digital input sensors, and one output relay for control of external devices.
RJ45 Sensor PortsDry Contact ClosuresOutput RelayUSB PortsEthernet PortPower OutputOptional Back-Up Battery |
ProtocolsDimensionsPowerEnvironmentalRegulatory ApprovalsWarranty |
Web Interface (view product demo)
Front Panel Interface
USB Serial Interface / Telnet / SSH
Mobile Summary Page
Open Source Monitoring Integration
Optional Management Software
